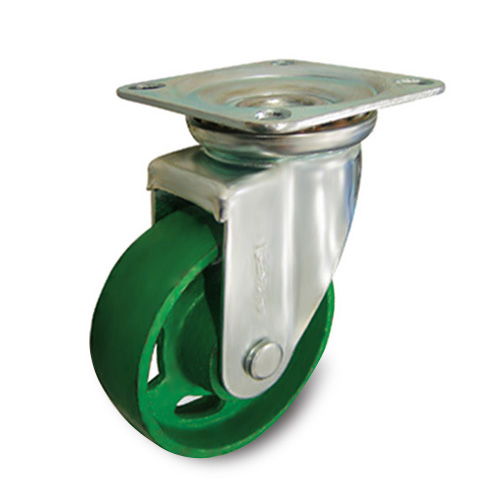

661CCB130J01 Industrial Swivel Caster
661CCB130J01 Industrial Swivel Caster
QTY:   Send Inquiry
Specification

Ethos 661CCB130J01 Industrial Swivel Caster

Brand Ethos
Mounting Type Top Plate Swivel
Wheel Diameter 130 mm
Width Of Tread 52 mm
Tread Material Cast-Iron
Wheel Colour Green
Flooring Measures Non-Marking
Elasticity Of Tread Bad
Abrasion Resistance Excellent
Oil Resistance Excellent
Water Resistance Fair
Chemical Resistance Good
Temperature Range -40℃ / +150℃
Load Capacity 260 kg
Bearing Type Double ball Bearing
Plate Size 108x108 mm
Plate Hole Centres 80x80 mm
Plate Hole Size 11 mm
Overall Height 177 mm
Offset 40 mm
Description
 Key Product Highlights:
  • Industrial Standard Compliance: Manufactured in strict accordance with Japanese Industrial Specifications (JIS) to ensure reliability in heavy-duty factory environments.

  • Heavy-Duty Load Rating: Specifically engineered for demanding industrial tasks with a robust load capacity of 260 kg per unit.

  • Smooth Swivel Mobility: Features a top plate swivel design for effortless 360-degree maneuverability of heavy machinery and equipment.

  • Durable Cast-Iron Wheel: Equipped with a green cast-iron wheel (52mm tread width) that provides excellent resistance to abrasion and industrial oils.

  • Maintenance-Optimized: The wheel includes an integrated grease nipple, allowing for easy lubrication to extend service life and maintain smooth rolling.

  • Rugged Housing Build: Constructed with a heavy-gauge steel housing featuring an electro-galvanized finish for superior corrosion protection.

  • High-Precision Movement: Utilizes a double ball bearing system to handle substantial weight with reduced rolling resistance.

  • Extreme Temperature Resilience: Performs reliably across a wide temperature range.

  • Usage Recommendation: Ideal for industrial settings; however, it is not recommended for indoor tilingdue to the hard cast-iron tread.

  • In Compliance To Japanese Industrial Specification. Housing made of heavy gauge steel.

  • Metal parts: Electro-galvanized finished. Wheel: Made of cast-iron - grease nipple

  • Not recommended for indoor tiling
