666PRZ130KB2
666PRZ130KB2
QTY:   Send Inquiry
Specification
ETHOS Caster Wheel - Castor Wheel :

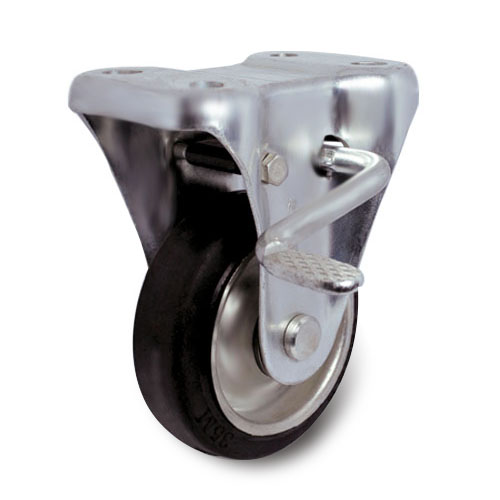

Ethos 666PRZ130KB2 Rigid Caster with Brake


Brand Ethos
Mounting Type Top Plate Rigid / Fixed with Brake
Wheel Diameter 130 mm
Width Of Tread 38 mm
Tread Material Polybutadiene Elastic Rubber
Wheel Centre Material Steel
Wheel Colour Black
Flooring Measures Marking
Elasticity Of Tread Excellent
Abrasion Resistance Good
Oil Resistance Bad
Water Resistance Good
Chemical Resistance Fair
Temperature Range -5℃ / +80℃
Load Capacity 180 kg
Bearing Type Double ball Bearing
Plate Size 137x93 mm
Plate Hole Centres 100x56 mm
Plate Hole Size 11 mm
Overall Height 177 mm
Description
 Key Product Highlights:
  • Japanese Industrial Standard (JIS) Compliance: Engineered in strict compliance with Japanese Industrial Specifications for reliable medium-duty industrial performance.

  • Unique Braking Capability: Unlike standard fixed models, this features a Top Plate Rigid mounting with an integrated brake for superior stationary stability.

  • High-Resilience Elastic Rubber: Built with a polybutadiene elastic rubber tread interlocked to a heavy-gauged steel-core for excellent shock absorption.

  • Durable Industrial Housing: Constructed with heavy gauge steel and an electro-galvanized finish to provide resilience and corrosion resistance.

  • High Load Stability: Supports a 180 kg load capacity and utilizes double ball bearings for long-lasting lubrication and smooth movement.

  • Temperature Range: Designed to maintain performance in temperatures ranging from -5°C to +80°C.

  • In Compliance To Japanese Industrial Specification. Medium duty industrial usage. Housing made of heavy gauge steel

  • Metal parts: Electro-galvanized finished. Inserted ball bearing for resilence and long-lasting lubrication

  • Elastic rubber interlocked to heavy gauged steel-core
