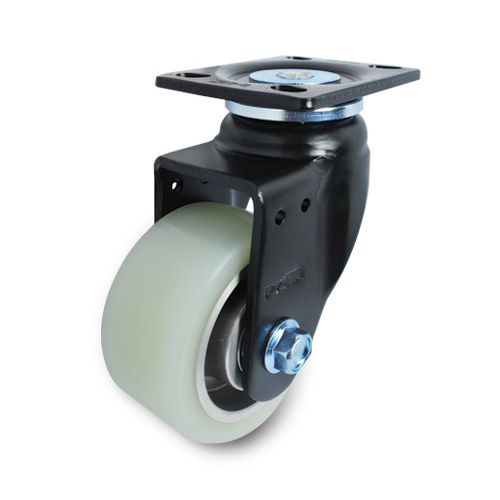

411PH100ASF-HUD Heavy Duty Swivel Caster
411PH100ASF-HUD Heavy Duty Swivel Caster
QTY:   Send Inquiry
Specification

Footmaster 411PH100ASF-HUD Heavy Duty Swivel Caster

Brand Footmaster
Mounting Type Top Plate Swivel
Wheel Diameter 100 mm
Width Of Tread 48 mm
Hardness Of Tread Shore A 95± 2
Tread Material Polyurethane
Wheel Centre Material Aluminium Die-cast
Wheel Colour Green
Flooring Measures Non-Marking
Elasticity Of Tread Average
Abrasion Resistance Good
Oil Resistance Good
Water Resistance Good
Chemical Resistance Average
Temperature Range -10℃ / +90℃
Load Capacity 400 kg
Bearing Type Precision ball bearing
Plate Size 100x85 mm
Plate Hole Centres 45-60x77-80 mm
Plate Hole Size 9 mm
Overall Height 157 mm
Offset 50 mm

​
Description



Key Product Highlights:

  • Heavy-Duty Load Rating: Specifically engineered to support a robust load capacity of 400 kg per unit.

  • Premium Polyurethane Tread: Features a green polyurethane tread (Shore A $95\pm2$ hardness) bonded to an Aluminium Die-cast core for superior durability and floor protection.

  • Industrial Grade Construction: Built with a pressed steel frame that is heat treated and powder coated for maximum structural integrity and corrosion resistance.

  • Precision Swivel Engineering: Equipped with a swivel double ballrace constructed with precision steel balls to ensure smooth, effortless 360-degree maneuverability.

  • Certified Quality: Proudly holds the Acquired CE Mark and R&D Recognition, ensuring international standards of safety and performance.

  • Smooth & Quiet Rolling: Utilizes precision ball bearings and non-marking materials to provide a quiet, professional-grade rolling experience.

  • Acquired CE Mark and R&D Recognition

  • ​Pressed steel frame heat treatment, powder coated

  • Swivel double ballrace constructed with precision steel ball
