Castor Wheel 150mm MC Nylon Footmaster 944MCD150GXT
Castor Wheel 150mm MC Nylon Footmaster 944MCD150GXT
QTY:   Send Inquiry
Specification

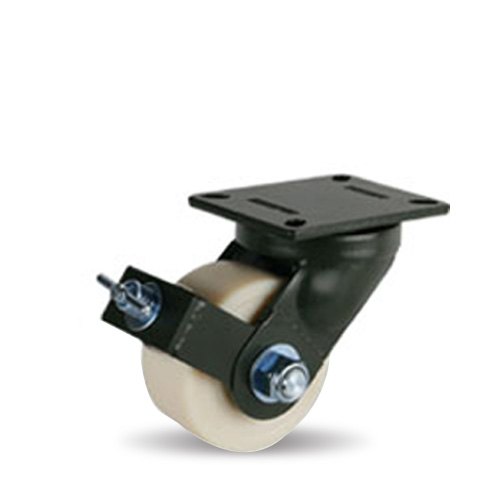

Footmaster 944MCD150GXT Heavy Duty Swivel Caster.
FOOT MASTER Caster Wheels / Castor Wheel

Brand Footmaster
Mounting Type Top Plate Swivel w/ Brake
Wheel Diameter 150 mm
Width Of Tread 70 mm
Hardness of Thread 70 Shore D
Tread Material MC Nylon
Wheel Colour Ivory
Flooring Measures Non-Marking
Temperature Range -10℃ / +90℃
Bearing Type Double ball bearing
Housing Material Carbon & Forge Steel
Load Capacity 2200 kg
Plate Size 175 x 140 mm
Plate Hole Centres 148/132 x 111/99 mm
Plate Hole Size 14 mm
Overall Height 200 mm
Offset 80 mm

Description
 Key Product Highlights:
  • Extreme Load Capability: Specifically engineered for the most demanding industrial environments, supporting a massive 2200 kg load capacity.

  • Advanced Locking Safety: Features a top plate swivel mounting with a brake, providing both mobility and high-security stationary stability under heavy loads.

  • Robust Material Build: Constructed from carbon and forge steel with a strongly welded kingpin and bolted wheel axle for maximum structural integrity.

  • High-Performance Nylon: The ivory MC Nylon wheel offers high abrasion resistance and is impact, corrosion, and shock resistant while remaining non-marking.

  • Industrial Grade Protection: The bracket is finished with a khaki powder coating and zinc-galvanization, ensuring long-term resistance to harsh chemicals and environmental conditions.

  • Smooth Precision Movement: Equipped with double ball bearings and a tapered roller bearing in the swivel head to handle extreme weights with minimal resistance.

  • Carbon and Forged Steel. Thrust bearing and tapered roller bearing in the swivel head

  • Kingpin strongly welded and bolted wheel axle. Strong welded bracket with legs khaki powder coating and zinc-galvanized

  • Easy changeable of wheel-set with leg cover

  • Wheels: High quality MC nylon. High abrasion resistance, shock and impact-resistant, corrosion-resistant. Ivory color. Double ball bearing
