7477PJH075P40

QTY:

Send Inquiry

Specification Description

Specification

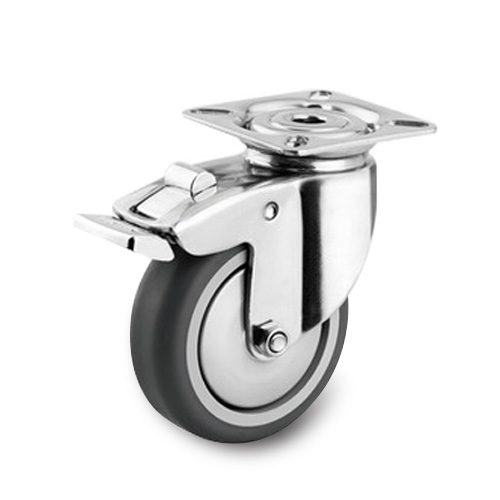

Tente 7477PJH075P40 Swivel Caster
Tente Caster Wheel / Castor Wheel

Brand	Tente
Mounting Type	Top Plate Swivel with Brake
Wheel Diameter	75 mm
Width Of Tread	25 mm
Hardness Of Tread	Shore A 85
Tread Material	Thermoplastic rubber
Wheel Centre Material	Polypropyelene
Wheel Colour	Grey
Flooring Measures	Non-Marking
Temperature Range	- 20 / + 60 °C
Load Capacity	75 kg
Bearing Type	plain bearing w/ threadguards
Housing Material	Stainless steel
Size of plate	60 x 60 mm
Plate hole centres	48/38 x 48/38 mm
Overall Height	100 mm
Swivel Interference	124 mm
Offset	24 mm

Description

Key Product Highlights:

Total Lock Safety: Features a swivel caster with a total lock mechanism and a chrome-plated brake pedal for maximum stability.
Corrosion-Resistant Build: The housing is made of high-quality stainless steel, making it perfect for environments requiring frequent washdowns or exposure to moisture.
Floor-Safe Mobility: Equipped with a grey non-marking TENTEprene (thermoplastic rubber) tread that protects sensitive floors while ensuring quiet movement.
Durable Design: Includes a double ball bearing swivel head and integrated threadguards to maintain smooth operation and protect the plain bearing from debris.
Compact Strength: Designed for light-duty applications with a reliable 75 kg load capacity
per wheel.
Swivel castor with total lock, tail end of castor, housing made of Stainless Steel
Double ball bearing swivel head, wheel axle with nut, zinc-die-casted chrome-plated brake pedal, plate fitting.
Wheel centre made of Polypropylene, Tread: TENTEprene (thermoplastic rubber), grey nonmarking, with threadguards, plain bearing
