PRZ130x38

QTY:

Send Inquiry

Specification Description Related Products

Specification

ETHOS Caster Wheel - Castor Wheel :

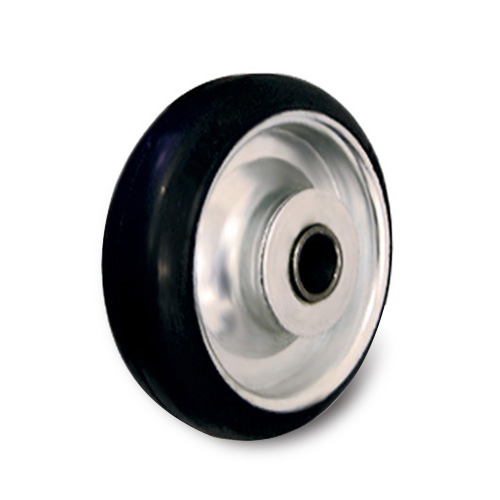

Ethos PRZ130x38 Caster Wheel

Brand	Ethos
Mounting Type	Wheels Only
Wheel Diameter	130 mm
Width Of Tread	38 mm
Tread Material	Polybutadiene Elastic Rubber
Wheel Centre Material	Steel
Wheel Colour	Black
Flooring Measures	Marking
Elasticity Of Tread	Excellent
Abrasion Resistance	Good
Oil Resistance	Bad
Water Resistance	Good
Chemical Resistance	Fair
Temperature Range	-5℃ / +80℃
Load Capacity	180 kg
Bearing Type	Double ball Bearing
Bore Size	20 mm
Hub length	52 mm
Bush	Steel
Profile	Convex

Description

Key Product Highlights:

Japanese Industrial Standard (JIS) Compliance: This wheel is manufactured to meet rigorous Japanese Industrial Specifications for medium-duty industrial usage.
High-Resilience Elastic Rubber: Features a polybutadiene elastic rubber tread interlocked to a heavy-gauged steel core, providing excellent elasticity and shock absorption.
Reliable Load Support: Specifically engineered to handle a load capacity of 180 kg per wheel.
Precision Maneuverability: Designed with a convex profile and double ball bearings to ensure smooth movement and long-lasting lubrication.
Durable Core Construction: Built with a steel center and a steel bush for enhanced structural integrity under industrial stress.
Wide Temperature Range: Suitable for various environments, maintaining performance in temperatures ranging from -5°C to +80°C.
In Compliance To Japanese Industrial Specification. Medium duty industrial usage
Inserted ball bearing for resilence and long-lasting lubrication. Elastic rubber interlocked to heavy gauged steel-core

Tags: CastorWheel Singapore, Ethos, PRZ130x38, 130mm Wheel Diameter, 38mm Tread Width, 180kg Load Capacity, Replacement Wheel Only, Polybutadiene Elastic Rubber, Steel Center, Black, Double Ball Bearing, 20mm Bore Size, Convex Profile, JIS Compliant, Medium Duty Industrial.
