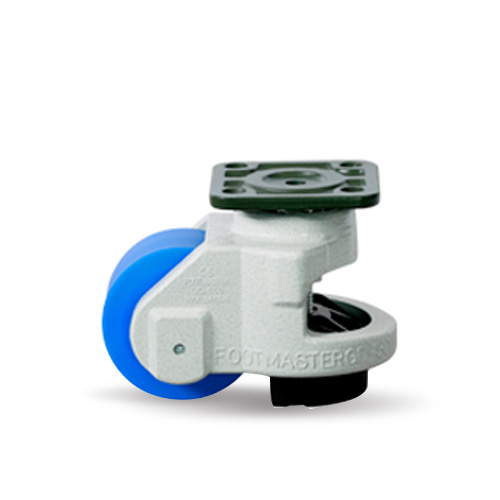

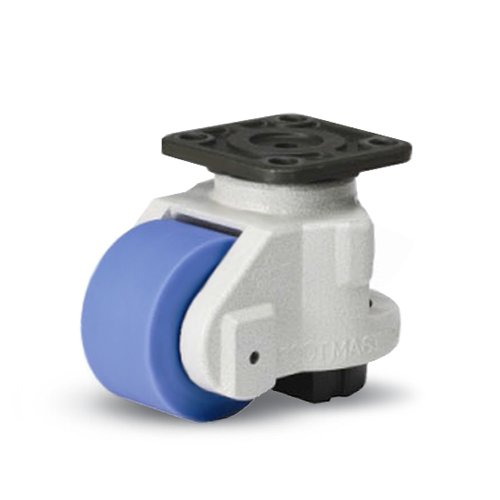

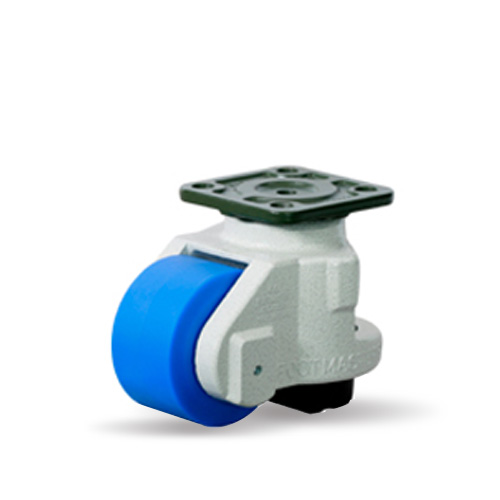

Caster Wheel MC Nylon Top Plate Swivel 581MCN150P96
Caster Wheel MC Nylon Top Plate Swivel 581MCN150P96 Caster Wheel MC Nylon Top Plate Swivel 581MCN150P96
Caster Wheel MC Nylon Top Plate Swivel 581MCN150P96
QTY:   Send Inquiry
Specification
Brand Ethos
Mounting Type Top Plate Swivel
Wheel Diameter 96 mm
Width of Thread 52 mm
Tread Material MC Nylon
Wheel Centre Material MC Nylon
Wheel Colour Blue
Flooring Measures Non-Marking
Temperature Range -10℃ / +90℃
Elasticity Of Tread Bad
Abrasion Resistance Good
Oil Resistance Good
Water Resistance Good
Chemical Resistance Good
Load Capacity 1500 kg
Bearing Type Plain Bearing
Plate Size 100x100 mm
Plate Hole Centres 70x70 mm
Plate Hole Size 13 mm
Overall Height 132 mm
Offset 117 mm
Leveling Height 15 mm
Description

Key Product Features:

  • Extreme Load Capacity: Built for high-performance industrial tasks with a massive 1500 kg load capacity.

  • Advanced Leveling: Designed specifically for Machineries Cushion Support, providing a leveling height adjustment of 15 mm for precise equipment stability.

  • Hi-Tech Materials: Features a bracket made of fully Hi-tech Nylon material for a lightweight yet incredibly strong frame.

  • Durable Tread: The MC Nylon wheel is non-marking and offers excellent resistance to abrasion, oils, and chemicals.

  • Temperature Versatility: Engineered to operate effectively in temperatures ranging from -10°C to +90°C.

  • Designed For Machineries Cushion Support. American patent

  • Bracket made of fully Hi-tech Nylon material (light weight). Sealed double ballrace swivel head
