5976PJE075P54
5976PJE075P54
QTY:   Send Inquiry
Specification

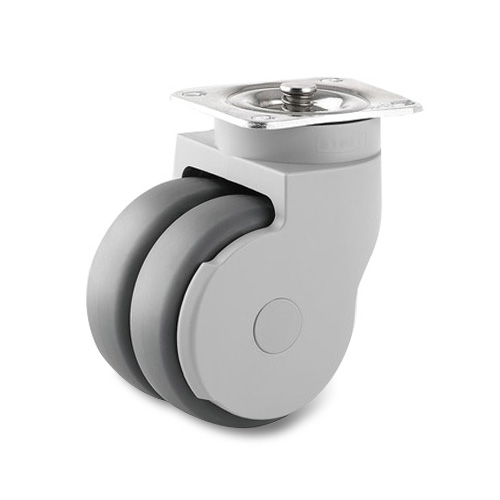

Tente 5976PJE075P54 Swivel Caster

Brand Tente
Mounting Type Top Plate Swivel w/ Brake
Wheel Diameter 75 mm
Width Of Tread 25 mm
Hardness Of Tread Shore A 87±
Tread Material Thermoplastic Rubber
Wheel Centre Material Polypropylene
Wheel Colour Grey
Flooring Measures Non-Marking
Temperature Range - 10 / + 40 °C
Load Capacity 70 kg
Bearing Type Cone Ball Bearing
Housing Material High grade synthetic material
Plate Size 70 x 55  mm
Plate Hole Centre 57/51 x 41 mm
Plate Hole Size 5.5 mm
Overall Height 102 mm
Offset 28 mm


Description

 Key Product Highlights:

  • Advanced Locking System: Features a swivel caster with a central lock mechanism for secure stationary positioning.

  • Durable Synthetic Housing: Constructed with high-grade synthetic material housing for a clean look and reliable performance.

  • Floor-Safe TENTEprene Tread: Equipped with a grey non-marking thermoplastic rubber (TENTEprene)tread that protects sensitive floors while ensuring quiet operation.

  • Smooth Maneuverability: Utilizes a double ball bearing swivel head and a cone ball bearing in the wheel for effortless movement.

  • Compact Load Strength: Designed for light-duty applications with a 70 kg load capacity and a low overall height of 102 mm.

  • Reliable Performance Range: Maintains consistent operation in temperatures ranging from -10°C up to +40°C.

  • Swivel castor with central lock, housing made from high grade synthetic materials

  • Double ball bearing swivel head, axle riveted, plate fitting.

  • Wheel centre made of Polypropylene

  • Tread: TENTEprene (thermoplastic rubber), grey non-marking, cone ball bearing, stainless
