Specification

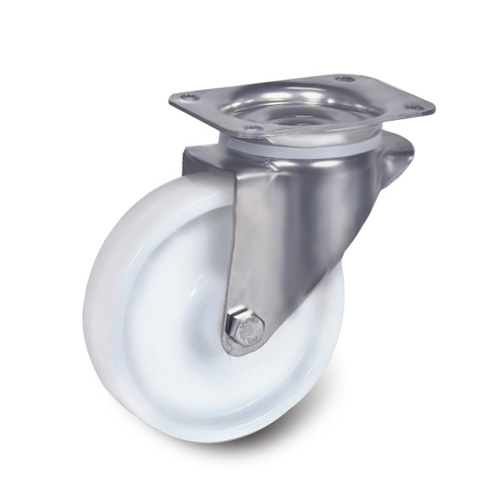

Tente 8470UOD100P62 Stainless Steel Caster
Light Medium Duty with Stainless Steel housing for Industrial Use

Brand Tente
Mounting Type Top Plate Swivel
Wheel Diameter 100 mm
Width Of Tread 36 mm
Hardness Of Tread Shore D 75
Wheel Centre Material Polyamide
Wheel Colour White
Flooring Measures Non-Marking
Temperature Range - 40 / + 80 °C
Load Capacity 200 kg
Bearing Type Roller Bearing
Housing Material Stainless Steel
Plate Size 105 x 85 mm
Plate Hole Centre 80/77 x 60 mm
Plate Hole Size 9 mm
Overall Height 128 mm
Offset 41 mm


Description

 Key Product Highlights:

  • Corrosion-Resistant Housing: Features a high-quality stainless steel housing, making it an excellent choice for environments prone to moisture or chemical exposure.

  • High-Strength Polyamide Wheel: The white polyamide wheel offers superior durability and high load-bearing performance in a compact 100mm size.

  • Reliable Load Capacity: Engineered for light medium duty industrial applications, supporting up to 200 kg per wheel.

  • Floor Protection: Designed with a non-marking white tread, ensuring that industrial or commercial floors remain clean and undamaged during use.

  • Precision Movement: Equipped with a double ball bearing swivel head and a roller bearing in the wheel for smooth maneuverability under load.

  • Wide Temperature Resilience: Built to maintain performance across diverse work environments with a temperature operating range of -40°C to +80°C.

  • Swivel castor, housing made of Stainless Steel

  • Double ball bearing swivel head, wheel axle with nut, plate fitting.

  • Wheel centre made of Polyamide, roller bearing made of stainless steel
