8470UFD100P62

QTY:

Send Inquiry

Specification

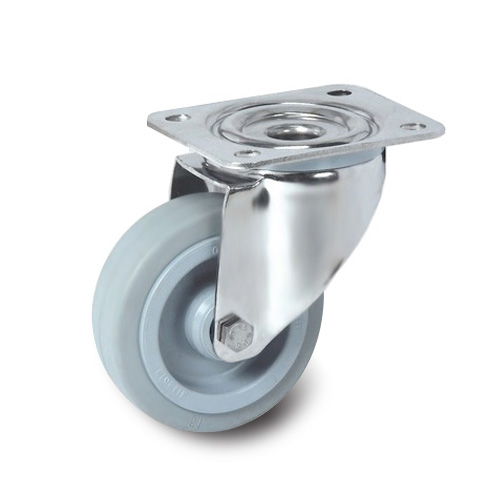

Tente Medium Heavy Duty Stainless Steel Caster (8470UFD100P62).
Tente Caster Wheels / Castor Wheels
Medium Heavy Duty with Stainless Steel housing for Industrial Use

Brand	Tente
Mounting Type	Top Plate Swivel
Wheel Diameter	100 mm
Width Of Tread	34 mm
Hardness Of Tread	Shore A 64±
Tread Material	Elastic Tyre
Wheel Centre Material	Polyamide
Wheel Colour	Grey
Flooring Measures	Non-Marking
Temperature Range	- 20 / + 80 °C
Load Capacity	160 kg
Bearing Type	Roller Ball Bearing
Housing Material	Stainless Steel
Plate Size	105 x 85 mm
Plate Hole Centre	80/77 x 60 mm
Plate Hole Size	9 mm
Overall Height	128 mm
Offset	41 mm

Description

Key Product Highlights:

Corrosion-Resistant Construction: Features a high-quality stainless steel housing, making it ideal for environments exposed to moisture or chemicals.
High-Traction Elastic Tyre: The grey non-marking elastic tyre (Shore A 64±) provides excellent grip and floor protection while ensuring quiet operation.
Reliable Load Capacity: Engineered for medium-heavy duty industrial applications with a steady 160 kg load capacity per wheel.
Smooth Maneuverability: Equipped with a double ball bearing swivel head and roller ball bearings in the wheel for easy movement under load.
Wide Temperature Resilience: Designed to maintain performance in diverse work environments with a temperature range of -20°C to +80°C.
Swivel castor, housing made of Stainless Steel, double ball bearing swivel head, wheel axle with nut, plate fitting.
Wheel centre made of Polyamide, Tread: elastic-tyre, non-marking, roller bearing, stainless

Tags: CastorWheel Singapore, Tente, 8470UFD100P62, 100mm Wheel Diameter, 160kg Load Capacity, Top Plate Swivel, Elastic Tyre Tread, Polyamide Center, Grey Wheel, Non-Marking, Roller Ball Bearing, Stainless Steel Housing, Shore A 64, Industrial Use, Corrosion Resistant.
