Specification

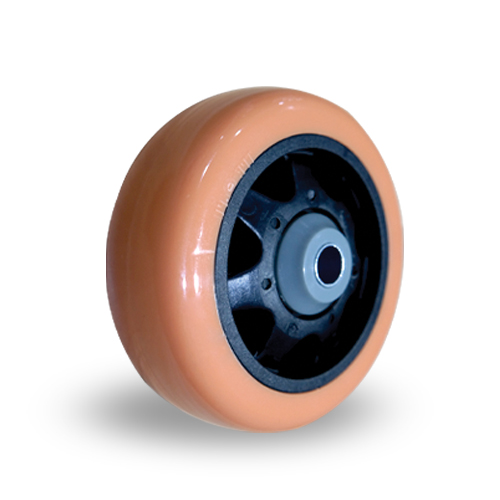

ETHOS Caster Wheel - Castor Wheel :
In compliance to German ISO Specification
In compliance to German ISO Specification
| Brand | Ethos |
| Mounting Type | Wheels |
| Wheel Diameter | 75 mm |
| Width Of Tread | 38 mm |
| Hardness Of Tread | Shore A 95± A |
| Tread Material | Thermoplastic Elastomer |
| Wheel Centre Material | Polypropylene (PP Core) |
| Wheel Colour | Orange |
| Flooring Measures | Non-Marking |
| Elasticity Of Tread | Average |
| Abrasion Resistance | Good |
| Oil Resistance | Good |
| Water Resistance | Good |
| Chemical Resistance | Average |
| Temperature Range | -5℃ / +50℃ |
| Load Capacity | 150 kg |
| Bearing Type | Double ball bearing #6001 (mini threadguard) |
| Bore Size | 10 mm |
| Bearing Bore | 12 mm |
| Bush | 11.9 mm |
| Axle | M10 |
| Hub Length | 46 mm |
Description
- In compliance to German ISO Standard Specification
- Bracket made of pressed steel • Double ballrace.swivel head
- Rig thickness: 2.5mm • Plate thickness: 3 mm (Rigid: 2.5mm)
- Finish: Paint coated, pantone colour (Anti-corrosion)
- Top plate bolt hole spacing according to ISO standard
- Wheels: Thermoplastic elastomer, TPE non-toxic plastic (non-marking)
- PP Core, double ball bearing #6001 (mini threadguard)
- Quiet rolling, abrasive, impact, oil, water and chemical resistant
- Hardness: 95 Shore A • Temperature range: -5°C~+50°C
