Specification

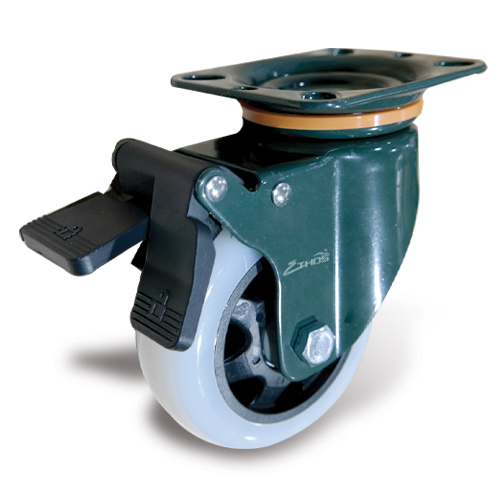

ETHOS Caster Wheel - Castor Wheel :
In compliance to German ISO Specification
| Brand | Ethos |
| Mounting Type | Top Plate Swivel with Total Brake |
| Wheel Diameter | 75 mm |
| Width Of Tread | 38 mm |
| Hardness Of Tread | Shore D 60-70 |
| Tread Material | PA Nylon |
| Wheel Centre Material | Polypropylene (PP Core) |
| Wheel Colour | White |
| Flooring Measures | Non-Marking |
| Elasticity Of Tread | Average |
| Abrasion Resistance | Good |
| Oil Resistance | Good |
| Water Resistance | Good |
| Chemical Resistance | Average |
| Temperature Range | -20℃ / +60℃ |
| Load Capacity | 200 kg |
| Bearing Type | Double ball bearing #6001 (mini threadguard) |
| Plate Size | 100x80 mm |
| Plate Hole Centres | 80/73 x 60/53 mm |
| Hub Length | 46 mm |
| Bore Size | 10 mm |
| Plate Hole Size | 11 mm |
| Overall Height | 111 mm |
Description
- In compliance to German ISO Standard Specification
- Bracket made of pressed steel • Double ballrace.swivel head
- Rig thickness: 2.5mm • Plate thickness: 3 mm (Rigid: 2.5mm)
- Finish: Paint coated, pantone colour (Anti-corrosion)
- Top plate bolt hole spacing according to ISO standard
- Wheels: PA Nylon on PP core (white non-marking)
- Double ball bearing #6001 (mini threadguard)
- Quiet rolling, abrasive, impact, oil, water and chemical resistant
- Hardness: 60-70 Shore D • Temperature range: -20°C~60°C
