Specification

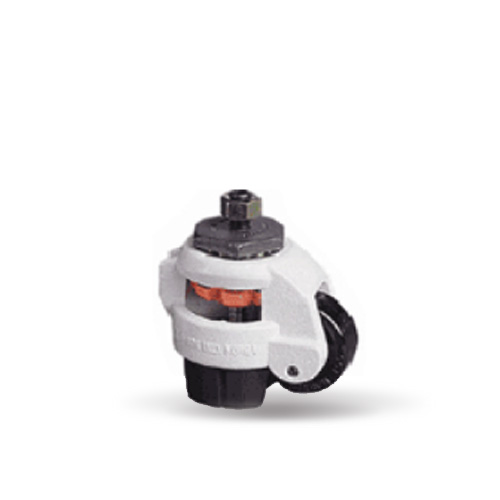

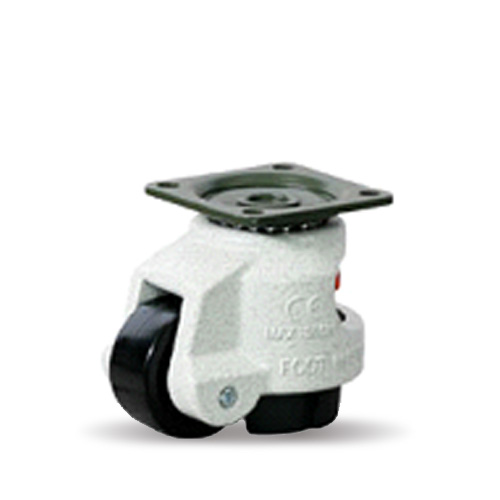

Leveling Caster Wheel - Leveling Castor Wheel :
Designed For Machineries Cushion Support. American patent.
| Brand | Footmaster |
| Mounting Type | Screw Threaded Swivel |
| Hardness of Thread | 70 Shore D |
| Wheel Diameter | 63 mm |
| Width Of Tread | 28 mm |
| Tread Material | Nylon |
| Wheel Colour | Black |
| Flooring Measures | Non-Marking |
| Temperature Range | -10℃ / +90℃ |
| Bearing Type | No bearing |
| Housing Material | Pressed Steel |
| Load Capacity / 1 pc | 500 kg |
| Load Capacity / 4 pcs | 1000 kg |
| Center Bolt | M12 x 1.75P or M16 x 2.0P |
| Bolt Length | 16 mm |
| Levelling Extent | 15 mm |
| Overall Height | 103 mm |
| Offset | 46 mm |
Description
- Pressed steel plate with khaki powder coating. Aluminum die-casting bracket with bi-level balls in the swivel head
- High quality ABS resin handle, wide back access to level. NBR resin cushion to stand, anti-vibration function.
- Ivory texture powder coating and zinc-galvanized. Wheel: High quality nylon. High abrasion resistance, shock and impact-resistant,
- Corrosion-resistant, high chemical resistance to alcohol, salts and certain acids, black color. No bearing
