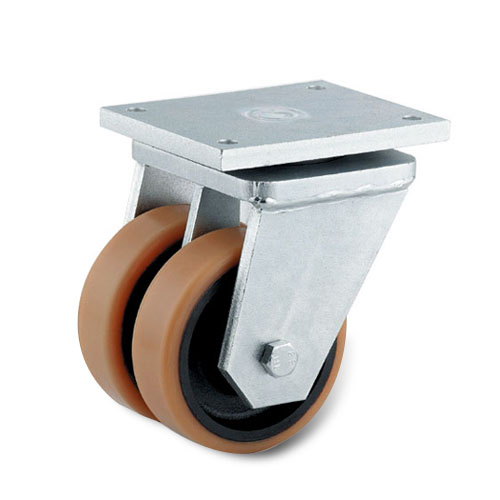

Tente Twin Caster Wheels / Castor Wheels : Heavy Duty for Industrial use
Brand
Tente
Mounting Type
Top Plate Swivel
Wheel Diameter
160 mm
Width Of Tread
50 mm
Hardness Of Tread
Shore A 92
Wheel Material
Polyurtehane
Wheel Centre Material
Cast-Iron
Wheel Colour
Orange
Flooring Measures
Non-Marking
Temperature Range
-20 / + 60 °C
Load Capacity
1500 kg
Bearing Type
Precision Ball bearing
Plate Size
200 x 160 mm
Plate Hole Centre
160 x 120 mm
Plate Hole Size
15 mm
Overall Height
235 mm
Offset
55 mm
Description
Key Product Highlights:
Extreme Load Performance: Engineered for the most demanding environments, this twin-wheel configuration supports a massive 1500 kg load capacity.
Industrial Grade Durability: Features a steel-welded housing, blue passivated and zinc-plated, with a sealed swivel bearing and tapered roller bearings for maximum longevity.
High-Traction Materials: The wheels are constructed with a cast-iron center and a cast polyurethane tread (Shore A 92), providing excellent floor protection and high impact resistance.
Precision Engineering: Equipped with a grease nipple for easy maintenance and a threaded king pin with a secured locking nut for stable, long-term operation.
Wide Temperature Range: Designed to perform reliably in extreme industrial conditions ranging from -20°C to +60°C.
Swivel castor, housing and plate steel-welded, zinc plated, blue passivated, sealed swivel bearing with dual purpose bearing and tapered roller bearing, threaded king pin and locking nut secured, grease nipple, wheel axle with nut.
Wheel centre made of cast iron, Tread: Polyurethane, casted, precision ball bearing, plate fitting
