HSS251N1200*685
HSS251N1200*685
HSS251N1200*685
QTY:   Send Inquiry
Specification
HIGHLY RECOMMENDED HAND PALLET JACK - HAND PALLET TRUCK.                                                                                                 GREAT FOR MATERIAL HANDLING IN FACTORIES, PACKING LINES, WAREHOUSE AND OTHER INDUSTRIAL USE



Brand Logsmith
Type of Fork HSS251N1200*685
Length of Fork (A) 1200 mm
Length of Fork (B) 1560 mm
Total width (C) 685 mm
Total Fork lowered (D) Min 74/85 mm
Total Fork raised (D) Max 190/200 mm
Fork Width standard (E) 160*50 mm
Internal Fork (F) 365 mm
Truck Weight 82 kg
Load Capacity 2500 kg
Description

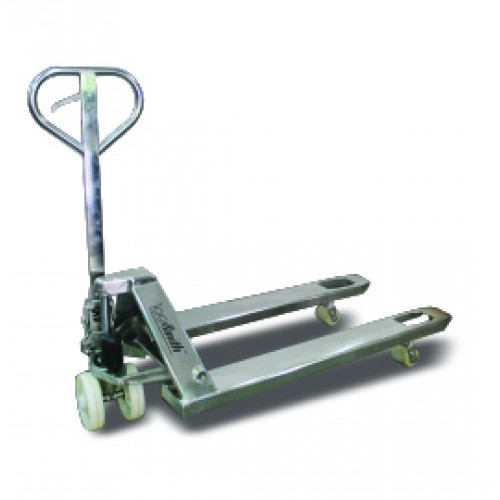

Manual Pallet Truck 2.5 & 3.0 Tons Stainless Steel (SUS304)
•  All hydraulic pallet truck parts are made of stainless steel including hydraulic pump, fork frame,  handle, push rod, bearing, pin and bolt, etc.
•  Suitable for food stuff,  chemicals,  pharmaceuticals and other aggressive environment.
•  The ergonomic handle safely protects the operator's hands.

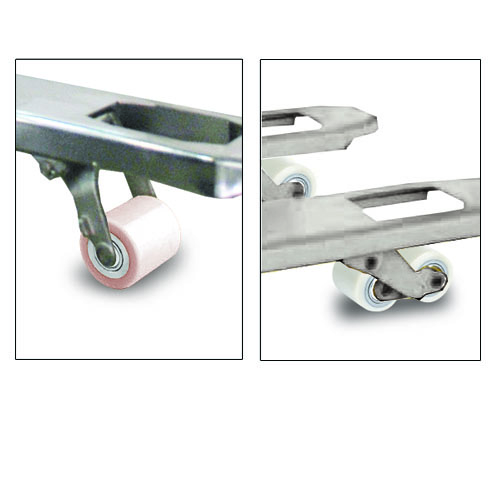

•  Polyamide steer and load rollers with stainless steel ball bearing.•  Pump stroke:  14 strokes

Warranty
3 months warranty against manufacturer’s defects not covering wear and tear or breakage which is  being misused beyond the recommended load capacity or any kind of unforseen dispute on the products.

12 months warranty on the hydraulic pump unit not covering misuse or any kind of unforseen dispute on the products.
