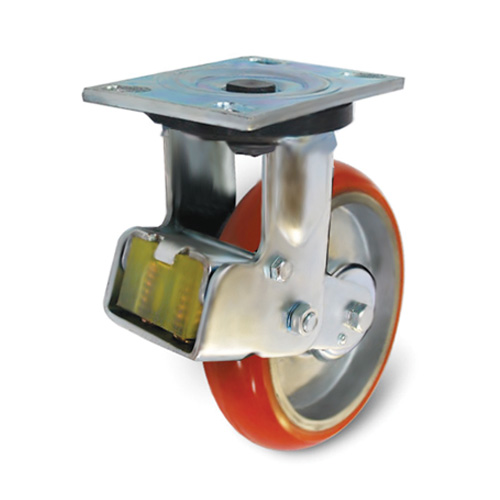

ALBION / COLSON •Caster Wheel / Castor Wheel : MEDIUM-HEAVY DUTY, SPRING-LOADED WITH DAMPENER
ALBION / COLSON •Caster Wheel / Castor Wheel : MEDIUM-HEAVY DUTY, SPRING-LOADED WITH DAMPENER
Brand | Albion / Colson |
Mounting Type | Spring-Loaded with Dampener Swivel |
Wheel Diameter | 150 mm |
Width Of Tread | 50 mm |
Tread Material | Polyurethane bonded to cast-iron centre |
Wheel Colour | Red |
Load Capacity | 450 kg |
Bearing Type | Roller Bearing |
Bore Size | 12.7 mm |
Plate Size | 159x114 mm |
Plate Hole Centres | 126x62-86 mm |
Plate Hole Size | 14.3 mm |
Hub Length | 65 mm |
Total Height | 203 mm |
Offset | 125 mm |
Description
SPRING-LOADED WITH DAMPENER MEDIUM-HEAVY DUTY
• Housing metal thickness 6mm constructed with double spring
• Swivel section is cold formed and hardened double ballrace
• Polyurethane bonded to cast iron centre • Wheel bore with roller bearing
• Temperature Range: -5ºC to +80ºC • Hardness: Shore A 55± 5
• Housing metal thickness 6mm constructed with double spring
• Swivel section is cold formed and hardened double ballrace
• Polyurethane bonded to cast iron centre • Wheel bore with roller bearing
• Temperature Range: -5ºC to +80ºC • Hardness: Shore A 55± 5
