Specification

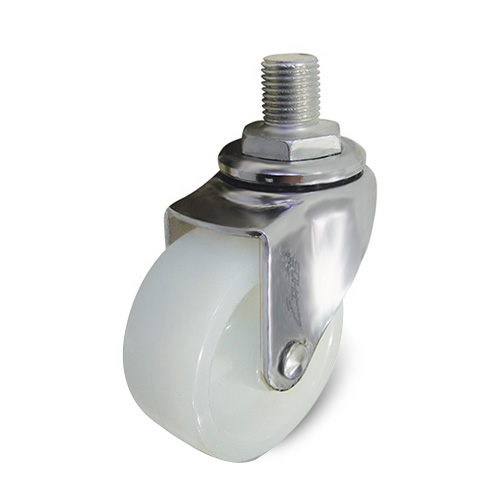

ETHOS Caster Wheel - Castor Wheel : In Compliance To Japanese Industrial Specification
| Brand | Ethos |
| Mounting Type | Screw Threaded Swivel |
| Wheel Diameter | 50 mm |
| Width Of Tread | 21 mm |
| Tread Material | Polypropylene (PP) |
| Wheel Colour | White |
| Flooring Measures | Non-Marking |
| Elasticity Of Tread | Bad |
| Abrasion Resistance | Average |
| Oil Resistance | Good |
| Water Resistance | Good |
| Chemical Resistance | Good |
| Temperature Range | -40℃ / +80℃ |
| Bearing Type | Plain Bearing |
| Housing Material | Zinc Plated Steel |
| Load Capacity | 30 kg |
| Threaded Stem Size | 1/2" - 20UNF |
| Threaded Stem Length | 15 mm |
| Overall Height | 65 mm |
| Offset | 18 mm |
Description
- In Compliance To Japanese Industrial Specification
- Bracket made of pressed steel 1.5mm, galvanized zinc 25 ~ 40mm castor with single ballrace swivel head
- 50mm castor with double ballrace swivel head
- Made of high quality polypropylene. White non-marking.
- Suit carpet and tile floors, abrasive. Impact and water resistance
- Hardness: 100± Shore A • Temperature Range: -40° to +80°C
