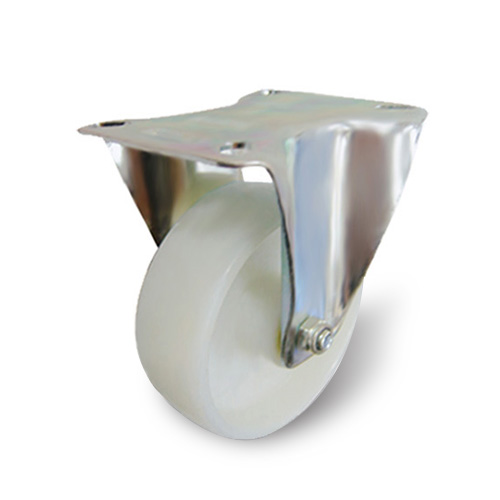

322PWA080P62 Rigid Caster
322PWA080P62 Rigid Caster
QTY:   Send Inquiry
Specification
ETHOS Caster Wheel - Castor Wheel :
In Compliance to German ISO Specification


Brand Ethos
Mounting Type Top Plate Rigid / Fixed
Wheel Diameter 80 mm
Width Of Tread 30 mm
Tread Material Polypropylene (PP)
Wheel Colour White
Flooring Measures Non-Marking
Elasticity Of Tread Bad
Abrasion Resistance Average
Oil Resistance Good
Water Resistance Good
Chemical Resistance Good
Temperature Range -20℃ / +80℃
Load Capacity 50 kg
Plate Size 105x79 mm
Plate Hole Centres 80/77x60 mm
Plate Hole Size 8.5 mm
Overall Height 105 mm
Description
 Key Product Highlights:
  • ISO Standard Compliance: This caster is manufactured in strict compliance with
    German ISO Specifications, ensuring high-quality standards for industrial use.

  • Durable Polypropylene Build: Features a white polypropylene (PP) wheel that
    offers good resistance to oil, water, and chemicals.

  • Robust Housing: Constructed with galvanized pressed steel and a double ballrace
    swivel head for increased durability.

  • Floor-Safe Design: The wheel provides non-marking flooring measures, making it
    ideal for maintaining clean industrial or commercial surfaces.

  • Optimized for Light-Medium Loads: Rated for a 50 kg load capacity at a maximum
    speed of 4 Kph.

  • Wide Temperature Resilience: Engineered to maintain performance in
    temperatures ranging from -20°C up to +80°C.

  • Compact Mounting Profile: Features a 105x79 mm plate size and a
    total overall height of 105 mm for a stable, low-profile fit.

  • In Compliance to German ISO Specification

  • Galvanized pressed steel. Double ballrace swivel head

  • Tough load for industrial usage

  • Safety load at max speed 4 Kph
