Caster Wheel 987MUZ300P57

QTY:

Send Inquiry

Specification Description Related Products

Specification

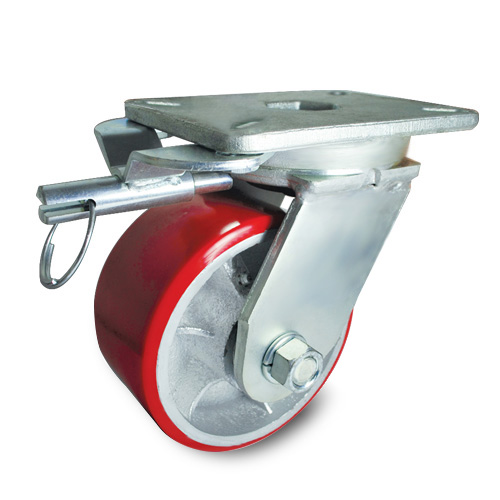

Caster Wheel / Castor Wheel :
In compliance to American Standard Specification. Extra Heavy Duty.

Brand	Ethos
Mounting Type	Top Plate Swivel with Directional Lock
Wheel Diameter	304.8 mm
Width Of Tread	76.2 mm
Tread Material	Polyurethane (PU)
Wheel Centre Material	Cast Iron
Wheel Colour	Red
Flooring Measures	Non-Marking
Elasticity Of Tread	Average
Abrasion Resistance	Good
Oil Resistance	Good
Water Resistance	Good
Chemical Resistance	Average
Temperature Range	-40℃ / +60℃
Load Capacity	1633 kg
Bearing Type	Precision Ball bearing
Plate Size	133.35x184.15 mm
Plate Hole Centres	86x133 or 103x155 mm
Plate Hole Size	14.29 mm
Overall Height	393.7 mm
Offset	82.55 mm

Description

Key Product Highlights:

Extreme Load Capacity: Engineered for massive industrial loads, supporting up to 1633 kg per wheel.
Superior Maneuverability: Features a Top Plate Swivel with Directional Lock, allowing for precision steering and stable straight-line tracking.
Industrial-Grade Construction: Built with a 3/8" carbon steel fork and 5/8" SAE 10-45 drop forged steel with full double ballrace ways for maximum durability.
High-Performance Materials: The polyurethane (PU) tread on a cast iron center provides excellent abrasion and oil resistance while remaining non-marking.
American Standard Compliance: Manufactured in compliance with American Standard Specifications for extra heavy-duty performance.

Extra Heavy Duty. In compliance to American Standard Specification
Fork leg 3/8” Carbon steel 5/8” SAE 10-45 Drop forged steel. Full double ballrace ways

Tags: CastorWheel Singapore, Ethos, 987MUZ300P57, 304.8mm Wheel Diameter, 12 Inch Caster, 1633kg Load Capacity, Extra Heavy Duty, Top Plate Swivel, Directional Lock, Polyurethane (PU) Tread, Cast Iron Center, Red Wheel, Precision Ball Bearing, Non-Marking, Drop Forged Steel, American Standard, Industrial Hardware
