Specification

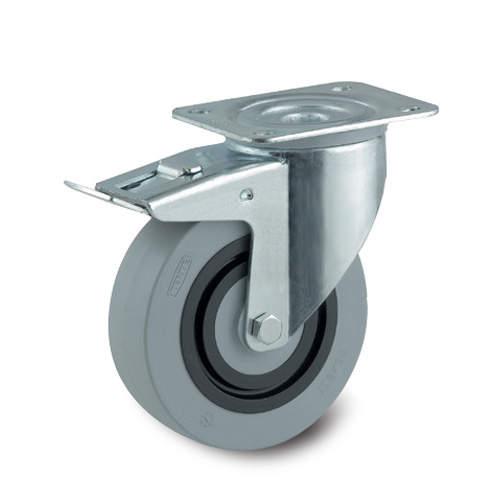

TENTE Caster Wheels / Castor Wheel
Brand | Tente |
Mounting Type | Top Plate Swivel w/ Brake |
Wheel Diameter | 125 mm |
Width Of Tread | 36 mm |
Hardness Of Tread | Shore D 75 |
Thread Material | Polyamide w/ elastic solid rubber centre |
Wheel Colour | Grey |
Temperature Range | - 20 / + 60 °C |
Load Capacity | 200 kg |
Bearing Type | Roller bearing |
Housing Material | Pressed steel |
Size of Plate | 105 x 85 mm |
Plate hole centres | 80/75 x 60 mm |
Plate Hole | 9 mm |
Overall Height | 155 mm |
Offset | 40 mm |
|
Description
- Swivel castor with total lock, tail end of castor, housing made of pressed steel, bright zinc plated, blue passivated
- Double ball bearing swivel head, wheel axle with nut, dustguard. Hybrid-wheel "SYNTECH",
- Wheel centre and tread made of Polyamide, with elastic solid rubber centre, noise reduced, roller bearing, plate fitting
