Specification

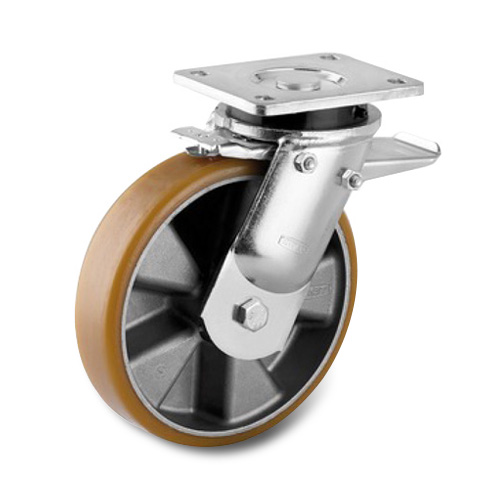

Tente Caster Wheels / Castor Wheels : Heavy Duty for Industrial use
| Brand | Tente |
| Mounting Type | Top Plate Swivel w/ Brake |
| Wheel Diameter | 125 mm |
| Width Of Tread | 50 mm |
| Hardness Of Tread | Shore A 92± |
| Tread Material | Polyurethane |
| Wheel Centre Material | Aluminum |
| Wheel Colour | Orange |
| Flooring Measures | Non-Marking |
| Temperature Range | -20 / + 60 °C |
| Load Capacity | 500 kg |
| Bearing Type | Precision Ball Bearing |
| Housing Material | Steel |
| Plate Size | 135 x 110 mm |
| Plate Hole Centre | 105 x 80/75 mm |
| Plate Hole Size | 11 mm |
| Overall Height | 170 mm |
| Offset | 48 mm |
Description
- Swivel castor with total lock, head end of castor, housing and plate steel-welded, bright zinc plated, blue passivated,
- sealed swivel bearing with dual purpose bearing and tapered roller bearing, threaded king pin and locking nut secured, grease nipple, wheel axle with nut, plate fitting.
- Wheel centre made of Aluminium, Tread: Polyurethane, casted, precision ball bearing
