5370PJP125R05-18x62
5370PJP125R05-18x62
QTY:   Send Inquiry
Specification

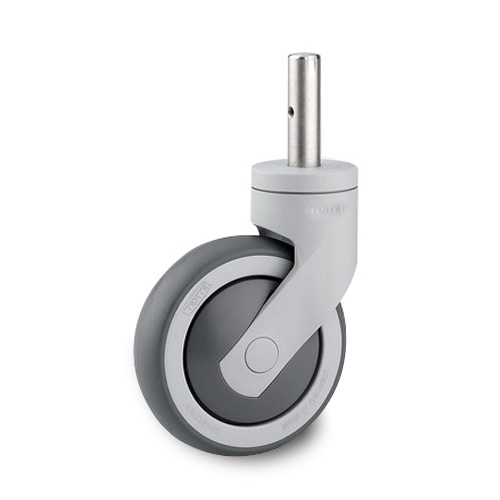

Tente Levina 5370PJP125R05-18x62 Swivel Caster

Brand Tente
Mounting Type Solid Stem Swivel
Wheel Diameter 125 mm
Width Of Tread 32 mm
Hardness Of Tread Shore D 87±
Tread Material Thermoplastic rubber
Wheel Centre Material Polypropylene
Wheel Colour Grey
Flooring Measures Non-Marking
Temperature Range - 10 / + 40 °C
Load Capacity 100 kg
Bearing Type Precision Ball Bearing
Housing Material High grade synthetic materials
Bolt-Ø 18 mm
Bolt length 62 mm
Overall Height 161 mm
Offset 38 mm

Description

 Key Product Highlights :

  • Professional Levina Series Design: Part of the premium Tente Levina series, featuring a sleek high-grade synthetic material housing optimized for institutional and professional environments.

  • Floor-Safe TENTEprene Tread: Equipped with a grey non-marking thermoplastic rubber (TENTEprene)tread that ensures quiet operation and complete protection for indoor flooring.

  • Heavy-Duty Solid Stem Mounting: Designed with a robust solid plug fitting (18mm bolt diameter, 62mm length) for secure attachment to specialized equipment.

  • Smooth Precision Mobility: Built with a double ball bearing swivel head and a precision ball bearing in the wheel to ensure effortless 360-degree maneuverability.

  • Reliable Load Support: Specifically engineered to handle a load capacity of 100 kg, making it ideal for medium-duty professional apparatus.

  • Optimized Dimensions: Features a 125mm wheel diameter with an overall height of 161mm and a 38mm offset for balanced movement.

  • Durable Core Construction: The wheel center is made of durable polypropylene, providing excellent structural integrity.

  • Wide Temperature Range: Maintains consistent performance in environments ranging from -10°C up to +40°C.

  • Swivel castor, housing and wheels made from high grade synthetic materials

  • Double ball bearing swivel head, solid plug fitting.Wheel centre made of Polypropylene

  • Tread: TENTEprene (thermoplastic rubber), grey nonmarking, precision ball bearing
