5327PJP125S70
5327PJP125S70
QTY:   Send Inquiry
Specification

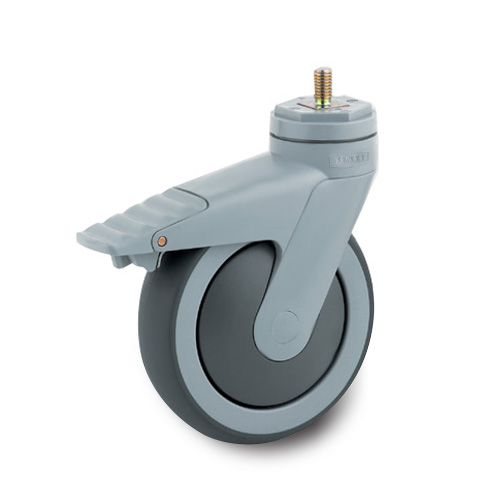

Tente 5327PJP125S70 Swivel Caster

Brand Tente
Mounting Type Screw Threaded Stem w/ Brake
Wheel Diameter 125 mm
Width Of Tread 32 mm
Hardness Of Tread Shore A 87
Tread Material Thermoplastic Rubber
Wheel Centre Material Polypropylene
Wheel Colour Grey
Flooring Measures Non-Marking
Temperature Range - 20 / + 60 °C
Load Capacity 100 kg
Bearing Type Precision ball bearing w/ threadguards
Housing Material High grade synthetic materials with threadguards
Threaded Stem M 10 x 17
Swivel interference 259 mm
Size of Plate 77 x 67 mm
Overall Height 162 mm
Offset 37 mm

Description
 Key Product Highlights:
  • Total Lock Security: Features a swivel caster with a total lock located at the tail end, ensuring both the wheel and the swivel head are securely immobilized.

  • High-Grade Synthetic Construction: The housing and wheels are made from high-grade synthetic materials, providing a durable and lightweight solution for industrial use.

  • Floor-Safe TENTEprene Tread: Equipped with a grey non-marking thermoplastic rubber (TENTEprene) tread that protects floors while ensuring quiet, smooth operation.

  • Threaded Stem Mounting: Designed with an M10 x 17 mm threaded stem featuring a hexagon neck for stable and easy installation.

  • Enhanced Protection: Includes integrated threadguards on both the wheel and housing to prevent debris from interfering with the bearing mechanism.

  • Corrosion Resistance: All metal parts are yellow passivated, offering an extra layer of protection against environmental wear and corrosion.

  • Precision Engineering: Utilizes a precision ball bearing to support a 100 kg load capacity with minimal rolling resistance.

  • Temperature Versatility: Engineered to maintain consistent performance in a temperature range from -20°C to +60°C.

  •  Swivel castor with total lock, tail end of castor, Housing and wheels made from high grade synthetic materials, with integrated threadguards, all metal parts are yellow passivated.

  • Wheel centre made of Polypropylene, Tread: TENTEprene (thermoplastic rubber)

  • Grey nonmarking, precision ball bearing, with threadguards, threaded stem with hexagon neck
