YUE-SA050R
YUE-SA050R
QTY:   Send Inquiry
Specification

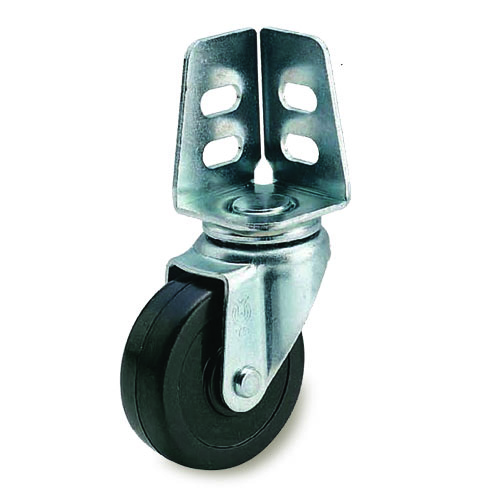

YUEI Caster Wheel  / Castor Wheel  Angle Bar Series. In Compliance To RoHS. For business machine application

Wheel diameter (mm)  A B C D E F G H
  (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
50 mm  31 51 13.5 9 15.5 19 19 4


Brand Yuei
Mounting Type Angle bar swivel
Wheel Diameter 50 mm
Width Of Tread 20 mm
Tread Material Rubber
Wheel Colour Black
Flooring Measures Marking
Load Capacity 30 kg
Housing Material Zinc Plated Steel
Overall Height 65 mm
Offset 22 mm
Turning Radius 47 mm
Description
  • Angle Bar Series. In Compliance To RoHS
  • These casters have shapes specialized for mounting casters to the angle, which is used as the mounting base.
  • A caster can be easily mou ted on the angle ujsing screws and bolts
  • Double ballrace swivel head, Zinc plated metal parts
  • Wheels made of rubber, natural black colour . For business machine application
