253UIY125T10
253UIY125T10
QTY:   Send Inquiry
Specification

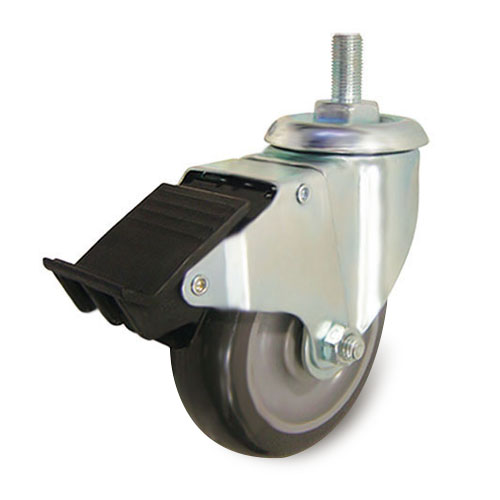

ETHOS Caster Wheel - Castor Wheel : American Industry Standard (RoHS Compliant)
Brand Ethos
Mounting Type Screw Threaded with Brake
Wheel Diameter 125 mm
Width Of Tread 32 mm
Hardness Of Tread Shore A 70±
Tread Material Polyurethane (PU)
Wheel Centre Material Polyolefin
Wheel Colour Grey
Flooring Measures Non-Marking
Elasticity Of Tread Average
Abrasion Resistance Good
Oil Resistance Good
Water Resistance Good
Chemical Resistance Average
Temperature Range -20℃ / +80℃
Bearing Type Double Cone Ball Bearing
Load Capacity 150 kg
Threaded Stem Size 1/2" - 20UNF
Threaded Stem Length 25 mm
Overall Height 159 mm
Offset 98 mm
Description
  • American Industry Standard (RoHS Compliant). Pressed steel bracket zinc plated, double ballrace swivel head.
  • Polyurethane hi-tech mechanically bonded to polyolefin core. Grey, non-marking, double cone ball bearing.
  • Quiet rolling, abrasive, impact, water and chemical resistance. Hardness: 95± shore A. Temperature Range: -40°C to +80°C.
