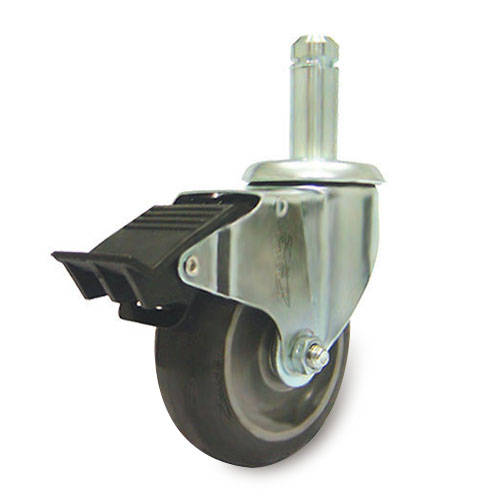

ETHOS Caster Wheel - Castor Wheel : American Industry Standard (RoHS Compliant)
Brand Ethos
Mounting Type Friction Ring Swivel with Brake
Wheel Diameter 125 mm
Width Of Tread 32 mm
Hardness Of Tread Shore A 95±
Tread Material Polyurethane (PU)
Wheel Centre Material Polyolefin​
Wheel Colour Grey
Flooring Measures Non-Marking
Elasticity Of Tread Average
Abrasion Resistance Good
Oil Resistance Good
Water Resistance Good
Chemical Resistance Average
Temperature Range -40℃ / +80℃
Bearing Type Double Cone Ball Bearing
Load Capacity 140 kg
Overall Height 160 mm
Friction Ring Stem Size 21.5-23.0 mm
Friction Ring Stem Length 55 mm
  • American Industry Standard (RoHS Compliant). Pressed steel bracket zinc plated, double ballrace swivel head.
  • Polyurethane hi-tech mechanically bonded to polyolefin core. Grey, non-marking, double cone ball bearing.
  • Quiet rolling, abrasive, impact, water and chemical resistance. Hardness: 95± shore A. Temperature Range: -40°C to +80°C.
